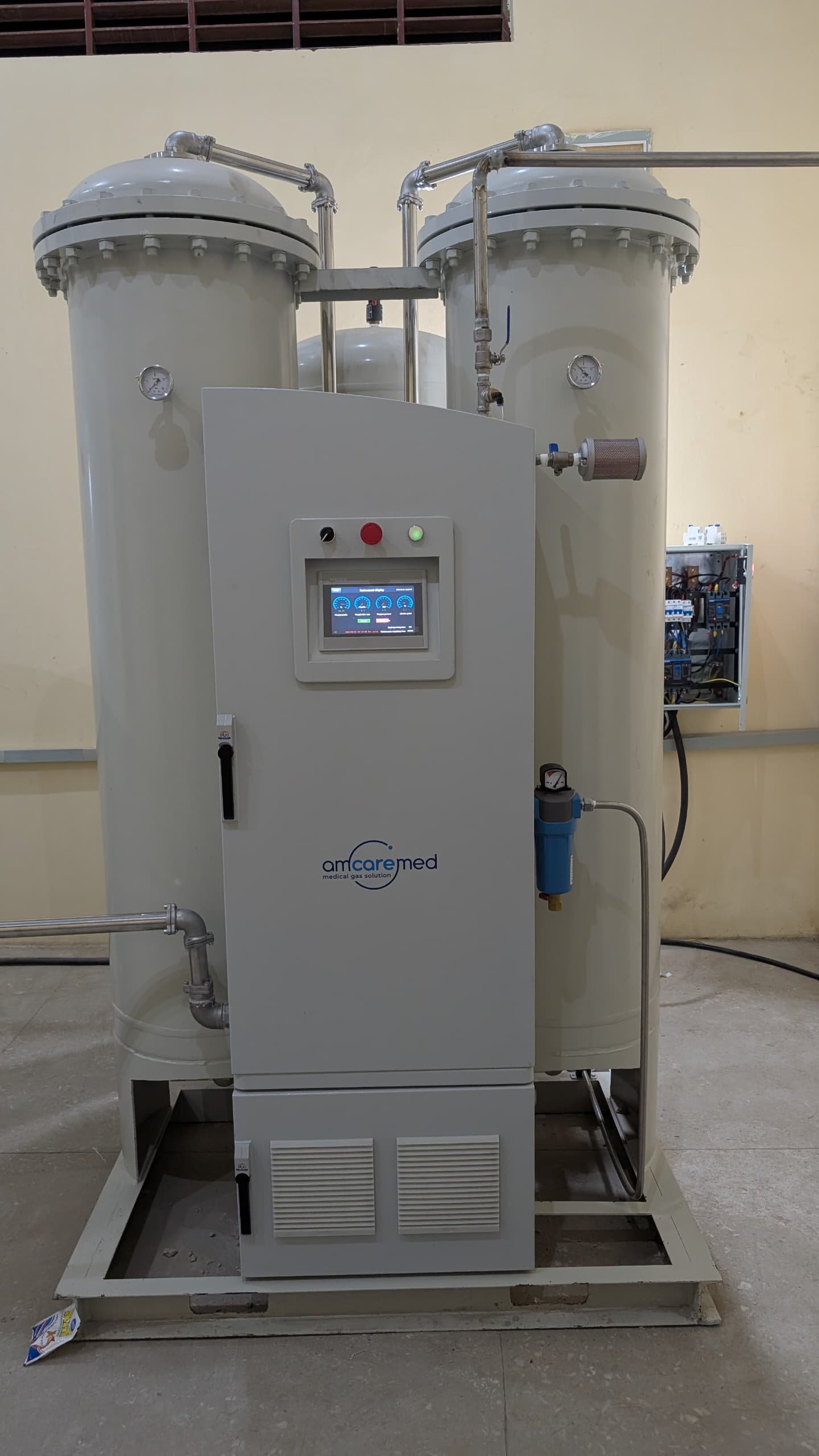

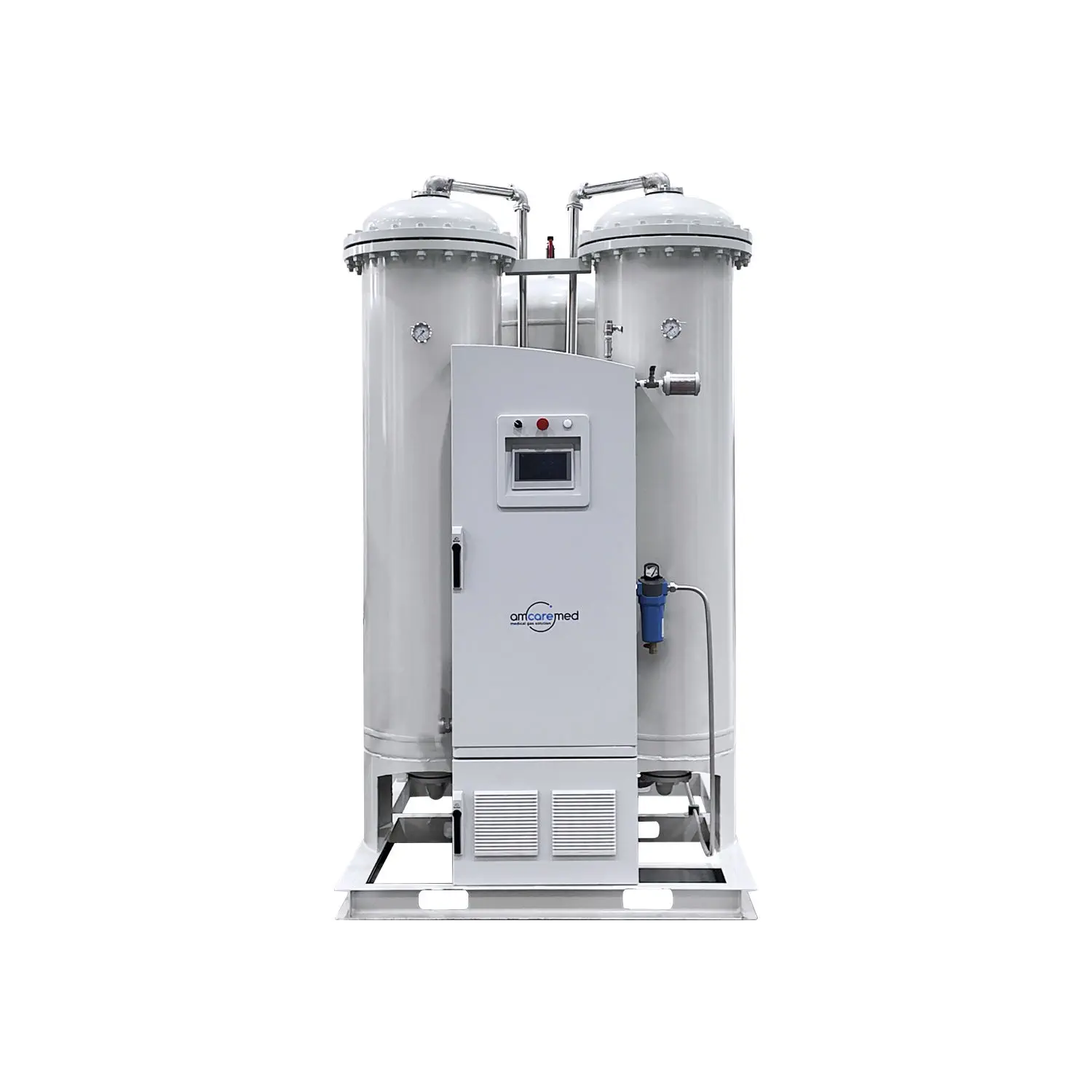

AmcareMed 99.5% Ultra High Purity Oxygen Generators utilize advanced PSA technology to deliver up to 99.5% purity oxygen. By adding a purified oxygen generator unit, it meets the stringent demands of medical and cleanroom applications.

Equipped with an advanced automatic control system, the generator ensures 24/7 reliable oxygen supply with minimal downtime, maintaining the safety and continuity of care. Compared to traditional cylinder oxygen supply, this system offers a cost-effective solution for long-term oxygen needs.

Specifications
* Oxygen Generators Capacity: 30Nm3/h
* Medical Oxygen Purity: 99%~99.5% (with PSA technology)
* Power supply: 380V/220V
* Out Pressure: 0.3~0.55 Mpa (adjustable)
* Operation Noise: ≤85dB(A)
* Comply with ISO 13485, EN ISO 7396-1 and EN 60601-1
* Two pcs molecular sieve beds, ensure uninterrupted operation
* High Efficiency Molecular Sieve Adopts advanced filling technology, excellent adsorption efficiency, and longer use life
* Quality Control Monitor oxygen purity, CO, CO2, dew point, and NO2 to ensure the produced oxygen meets standards.
* Medical Grade Tubing Use medical-grade stainless steel pipes and fittings, with all oxygen-contact components undergoing strict treatments to ensure optimal oxygen cleanliness
* Automatic Control Panel Monitor signals from the pressure sensor and provides an alarm system and a fail-safe shutdown mode

Characteristics
Applications- medical Configurationmodular, on site, compact

Type – PSA

Operating mode – continuous flow

• Other characteristics -high-purityFlow rate
  Min.: 3 m³/h
  (105.944 ft³/h)
• Max.: 100 m³/h
  (3,531.467 ft³/h)

Oxygen pressure – Min.: 30 bar (43.511 psi)

Max.: 5.5 bar  (79.771 psi)

Oxygen purity  Min.: 99 %

Max.: 99.5 %
