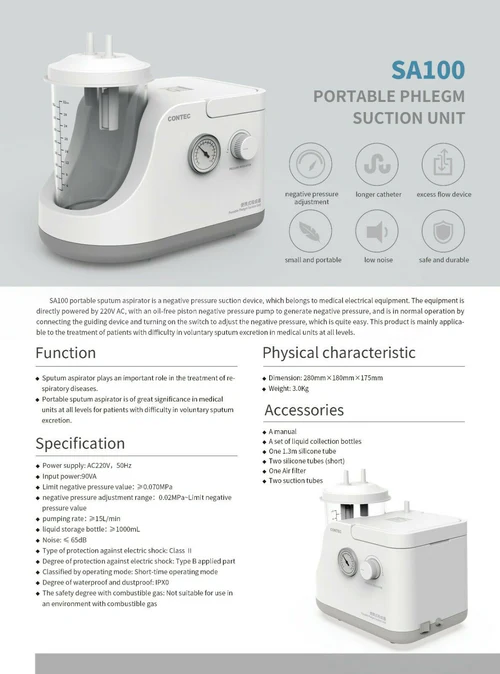

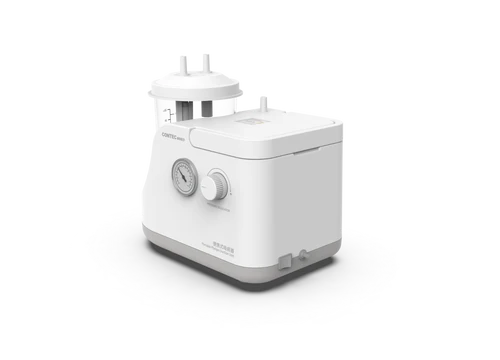

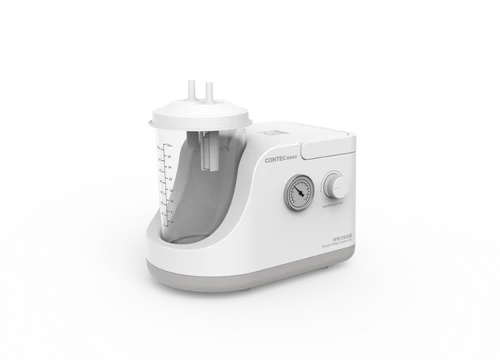

SA100 portable sputum aspirator is anegative pressure suction device , which belongs to medical electrical equipment .
The equipment is directly powered by 220V AC , with an oil – free piston negative pressure pump to generate negative pressure , and is in normal operation by connecting the guiding device and turning on the switch to adjust the negative pressure ,whichis quite easy .
This product is mainly applica – ble to the treatment of patients with dificulty in voluntary sputum excretion in medical units at all levels .
Aceessories
A manual
A set of liquid collection bottles
One 1.З m silicone tube
Two silicone tubes ( short )
One Air filter
Two suction tubes
Specification
Power supply :AC220V,50Hz
Input power :90VA
Limit negative pressure value :≥0.070MPa
negative pressure adjustment range :0.02MPa- Limit negative pressure value
pumping rate :≥15L/ min
liquid storage bottle :>1000mL Noise :≤65dB
Type of protection against electric shock : Class II
Degree of protection against electric shock : Type B applied part + Classified by operating mode : Short – time operating mode
Degree of waterproof and dustproof :IPX0
The safety degree with combustible gas : Not suitable for use in an environment with combustible gas
